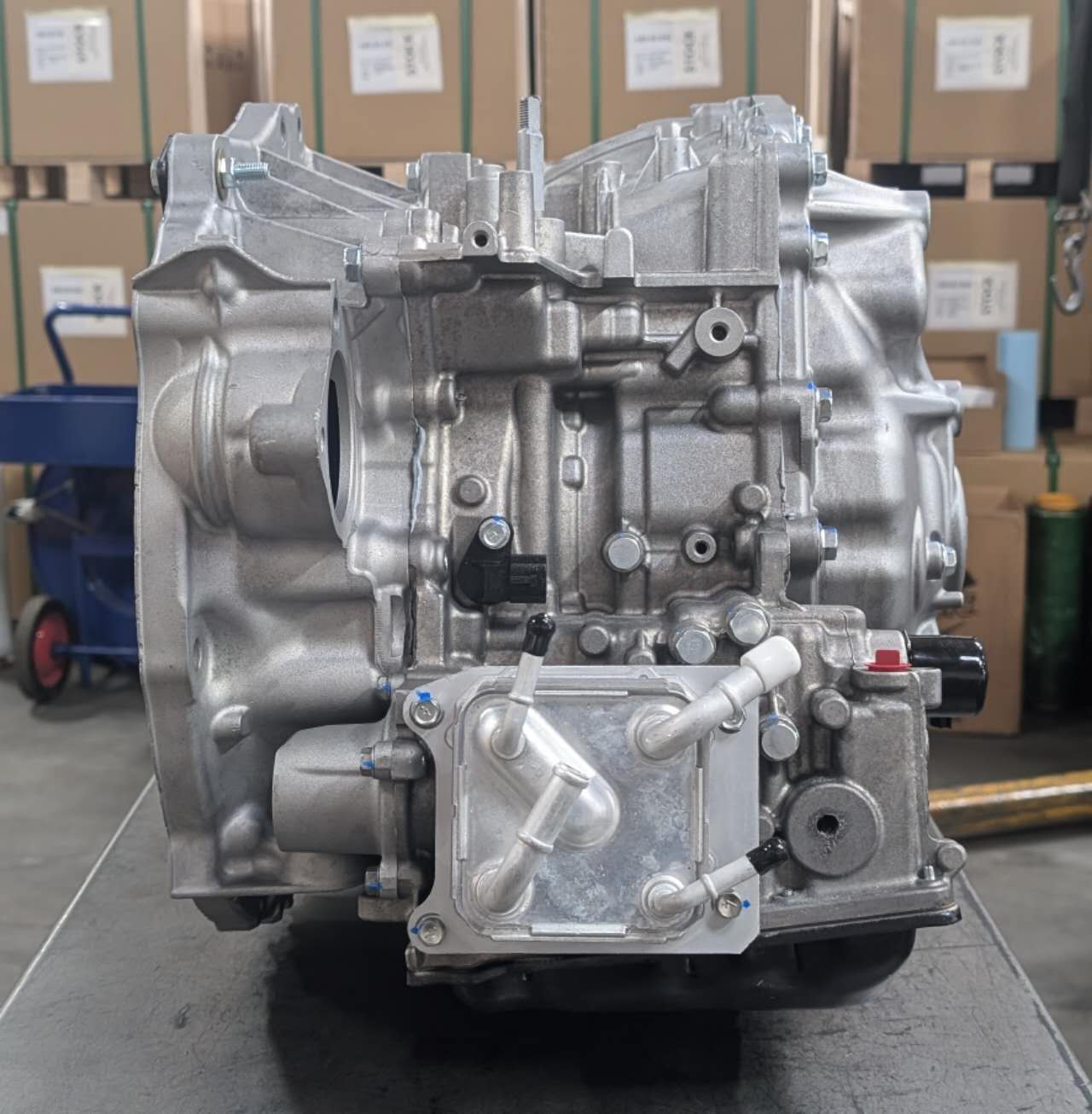

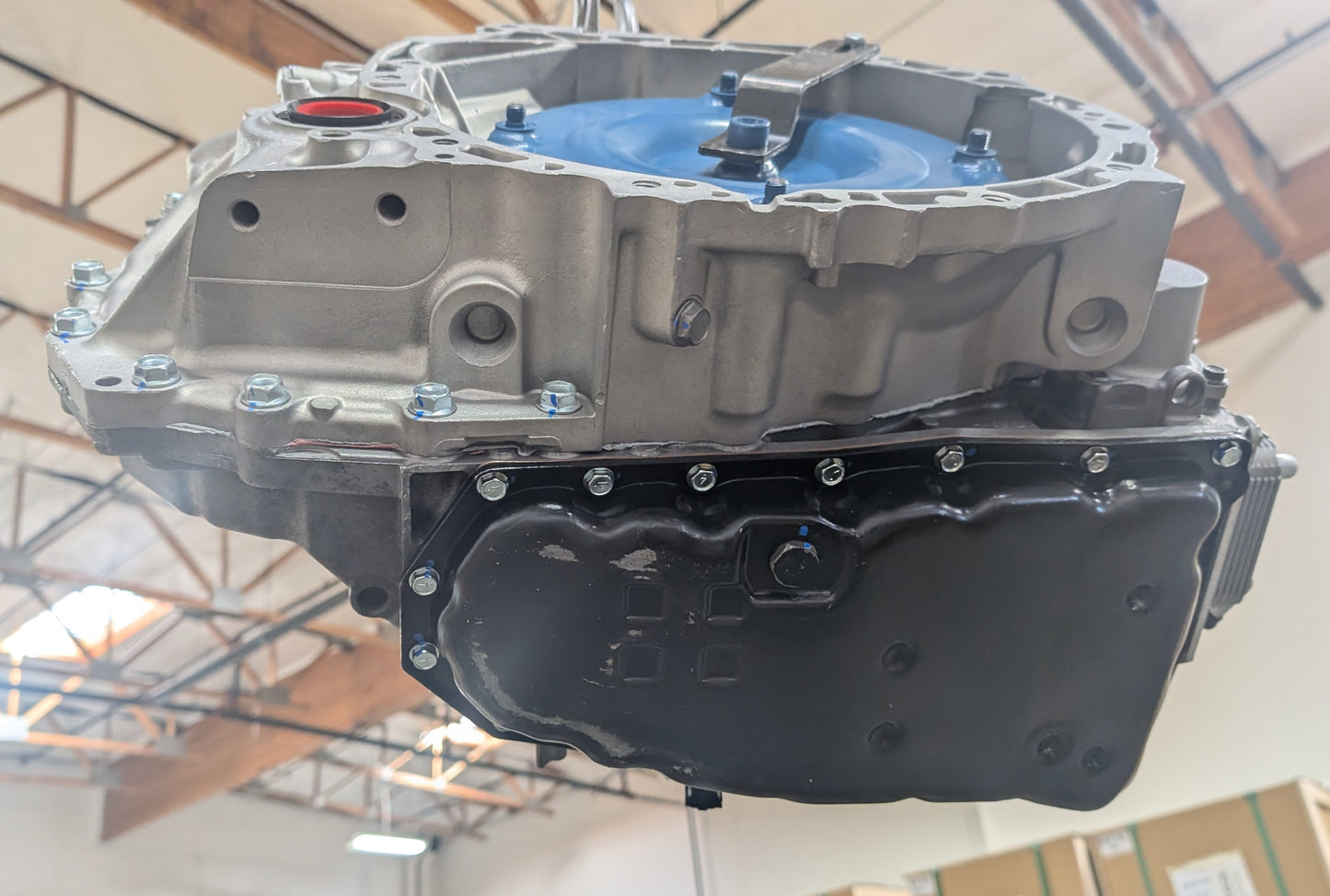

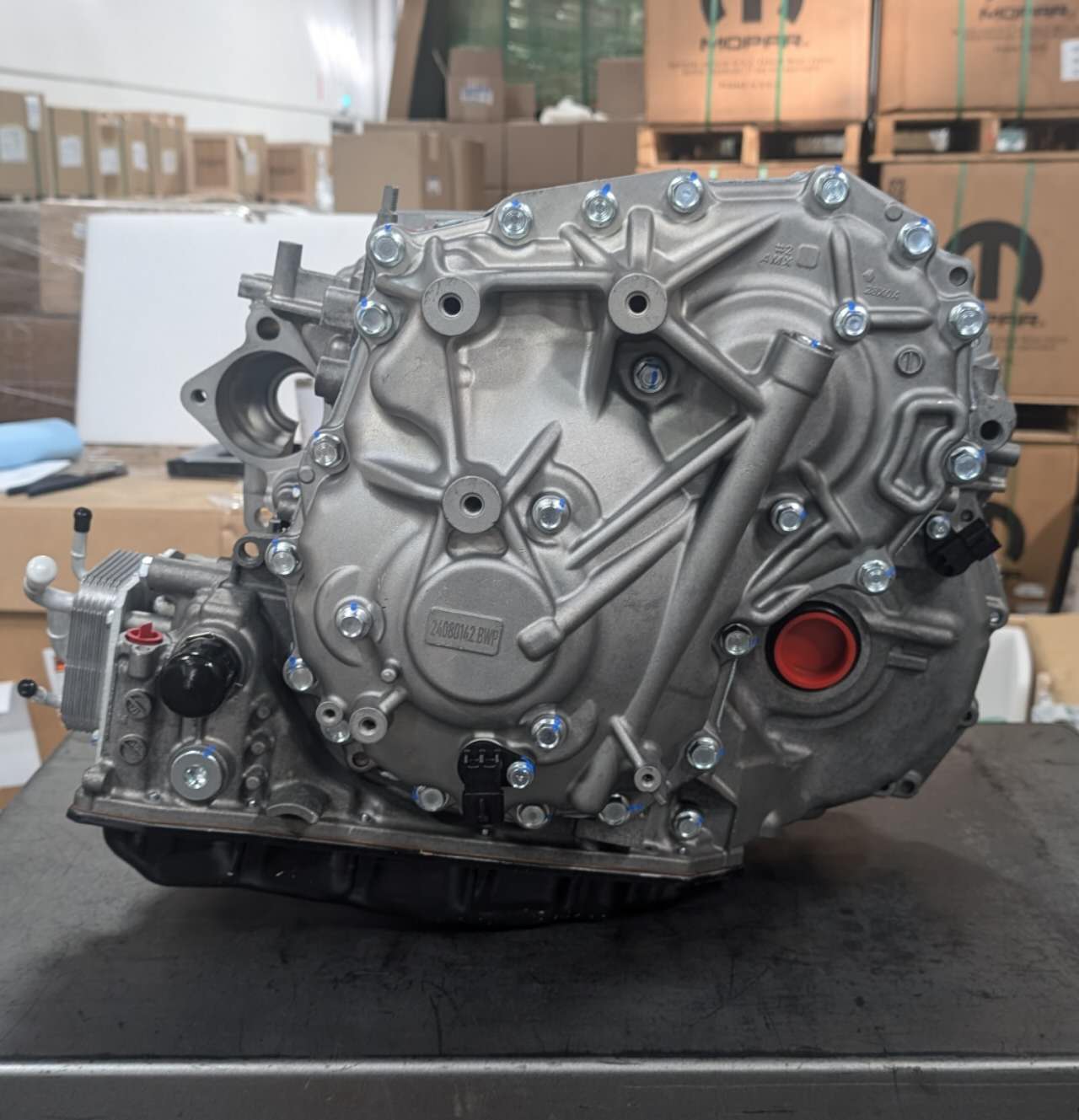

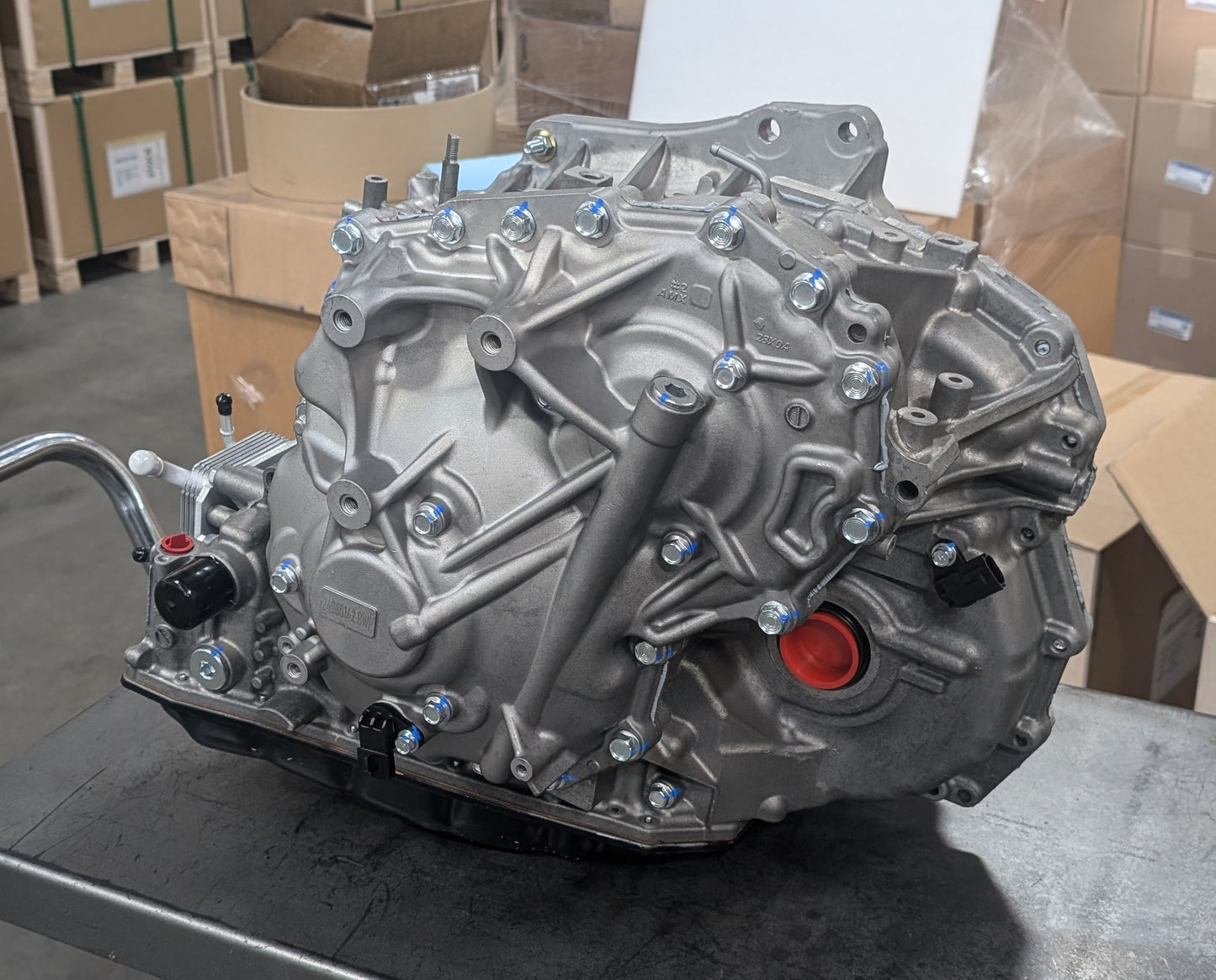

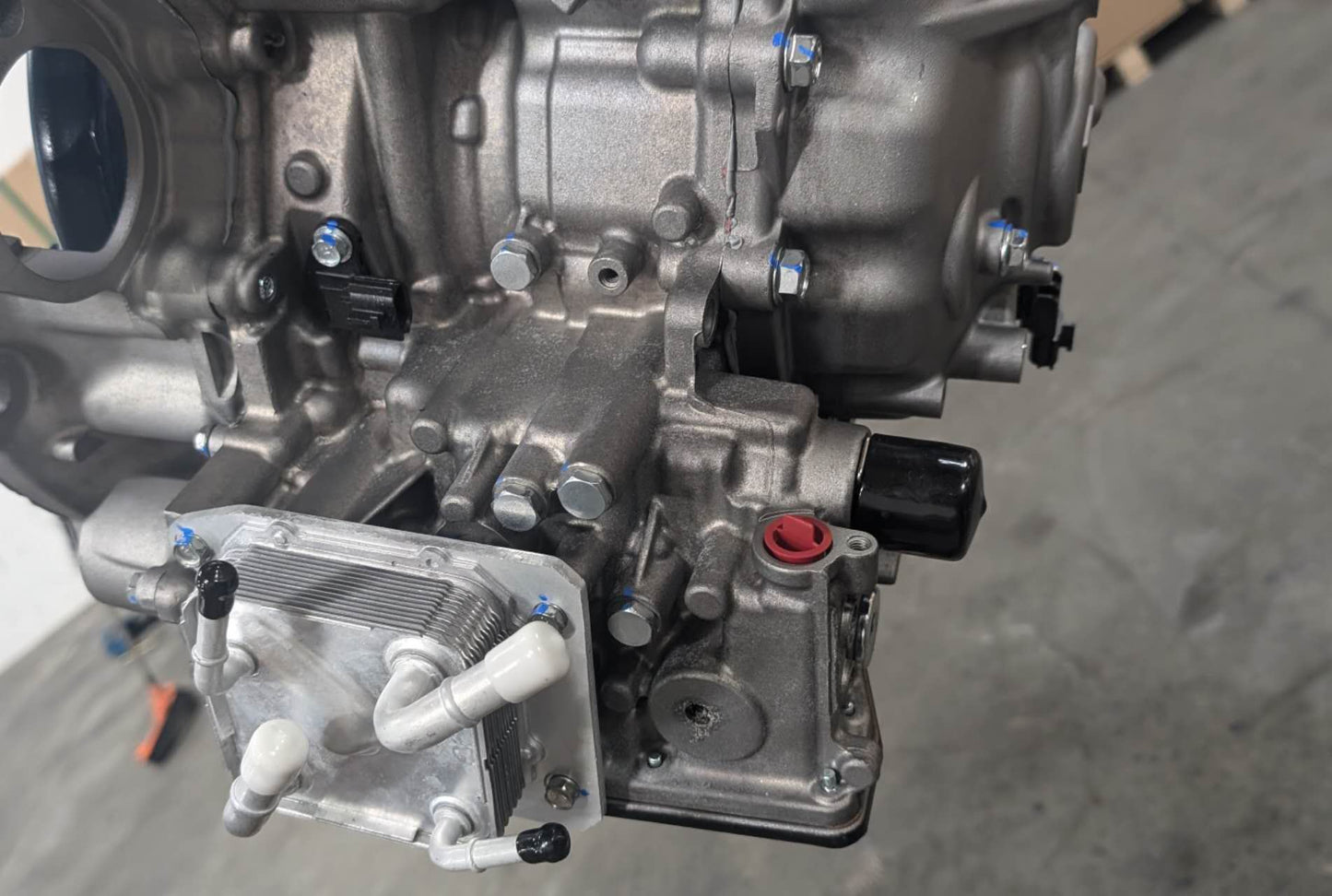

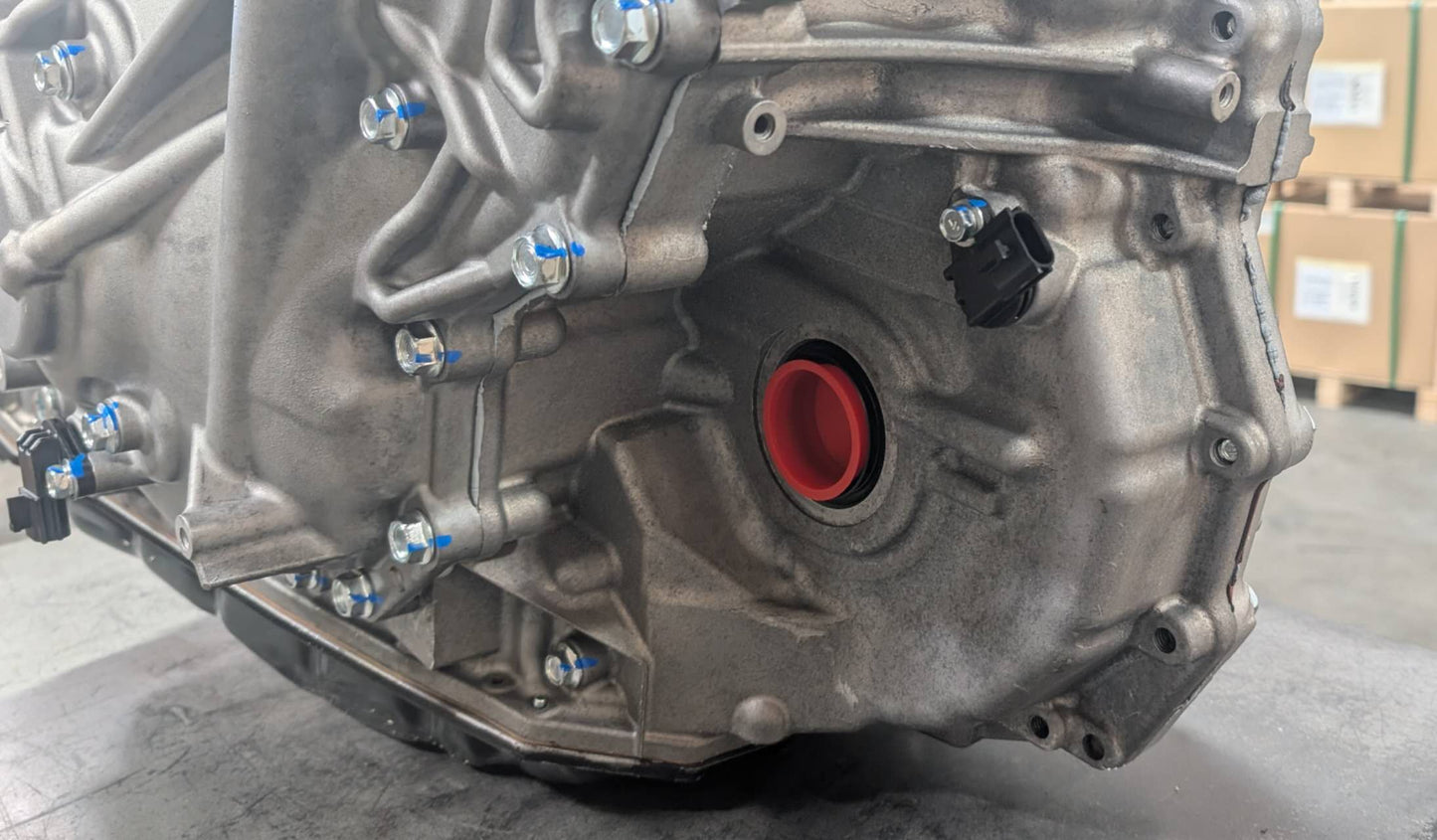

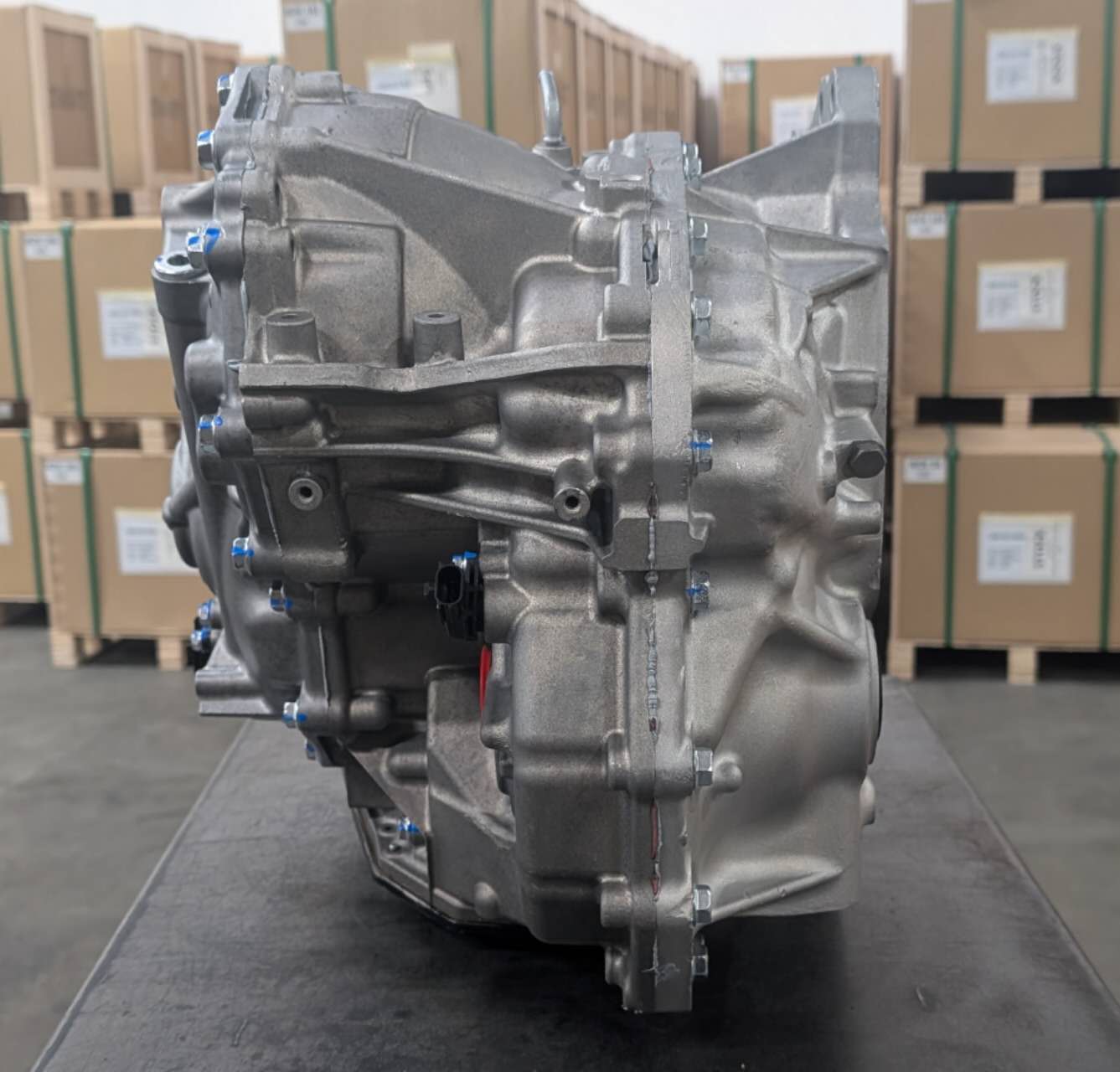

Reman 3VX0C RE0F10D/JF016E for 2013 - 2018 Altima 2.5L
Reman 3VX0C RE0F10D/JF016E for 2013 - 2018 Altima 2.5L
Pickup available at 2084 East Francis Street
Usually ready in 24 hours
Interchangeable code
31020-3VX0C
3102M-3VX0CRE
JATCO Stamp Code
3VX0C
Fitment
2013 Altima 2.5L
2014 Altima 2.5L
2015 Altima 2.5L
2016 Altima 2.5L
2017 Altima 2.5L
2018 Altima 2.5L
3VX0C and 3VX0A are often confused with each other because they both used in the 2013-2015 Nissan Altima 2.5. These transmissions are not interchangeable and fitment should be determined by JATCO stamp code or VIN.

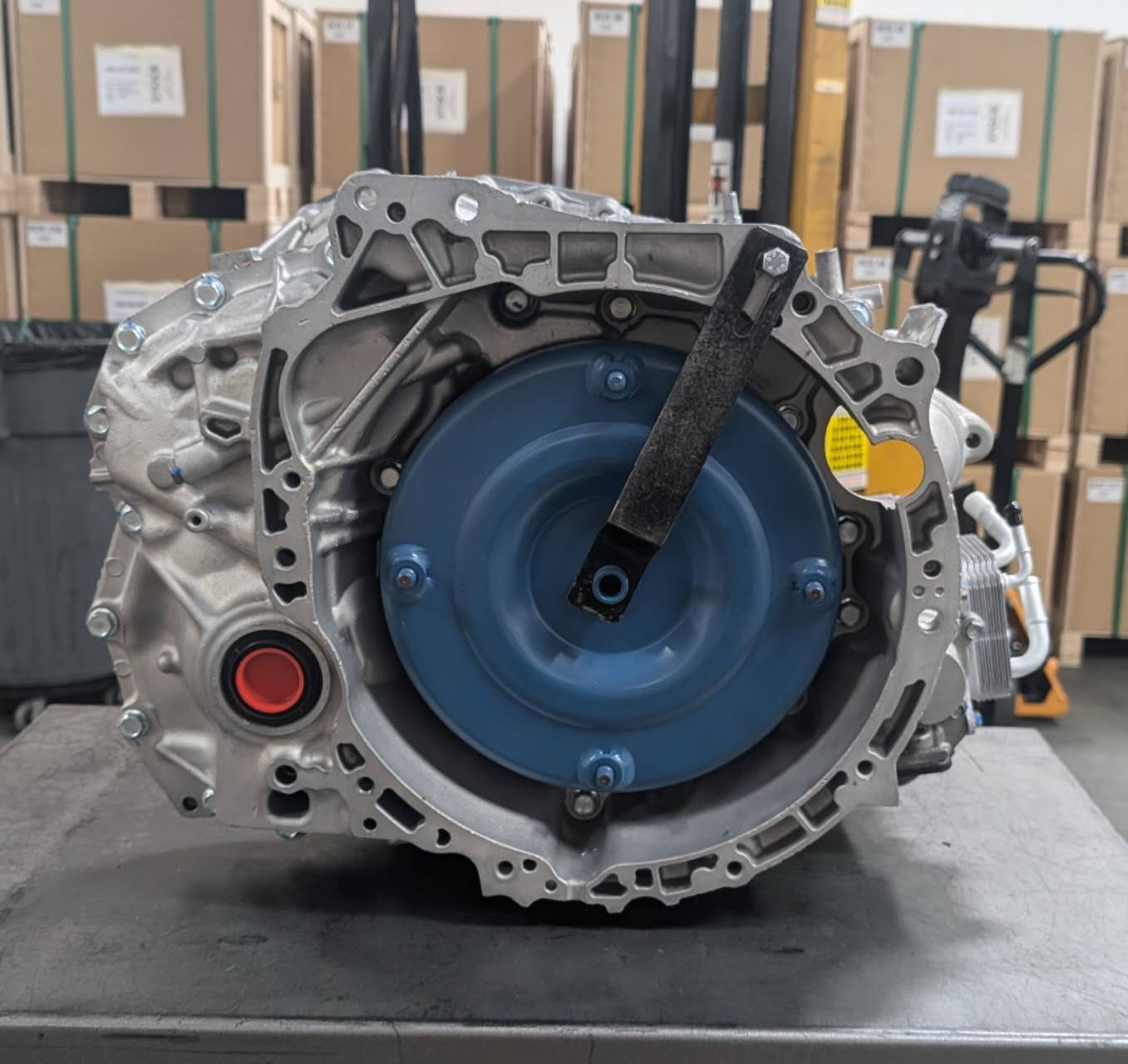

The two transmissions have different bell housings where the starter motor mounts. On 3VX0C an opening for the starter is partially cut into the bell housing. On 3VX0A the starter motor is further back and there is no cut in the bell housing.
Internal Parts 3VX0C
Valve Body - RE0F10D/JF016E CVT8 VB 2.5
Secondary pulley teeth: 30
Differential Tooth Count: 68
Transfer Gear: 23/49
Rear Cover Code: 28X0A
Torque Converter Code: 26A/26E/26J
3VX0A is missing the notch cut into the bell housing for the starter motor.
